Why here？ We X Entertainment Management Solution
Gate
Solutions
描述
ADVANTAGE
Features
描述
Round-the-clock support in multiple languages
Multilingual
描述
Support physical tickets and QR code e-tickets
Diversification of ticket checking
描述
Support face recognition,
body temperature measurement
Permissions management
描述
Failure self-diagnostic and warning alarm
Safe
描述
Supports multiple ticketing settings
Diversified deduction methods
描述
Efficient API integrations with third-party systems
API
PRODUCTS
Hardware
描述
• Input voltage： AC220±10%V/50±10%HZ
• Working temperature： -15℃~80℃
• Working humidity： Humidity is less than 95%
• Opening / closing speed： Less than 0.6 seconds
• Shell material： Standard stainless steel (304)
• Production process： Full computer numerical control CNC machining
• Gate material： Acrylic, stainless steel, etc.
• Standard channel width： 600mm/1150mm
• Communication interface： RS485
• Total power： Less than 75W
• Communication distance： Less than 1200m
• Signal input：Dry contact signal or 12V level signal (Effective signal is a pulse signal.        The effective duration of the signal is greater than or equal to 50ms.
  The minimum driving current is10mA)
• Working environment： Indoor and outdoor (canopy installed outdoors)

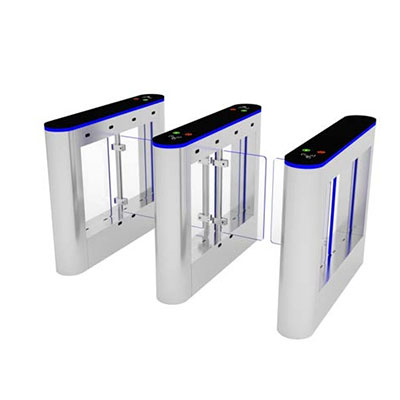

Speed Gate Series
• Input voltage： AC220±10%V/50±10%HZ
• Material： Stainless steel
• Channel width： Customize
• Swing arm transmission angle： 180°
• Light reminder： Traffic direction arrow indication
• Swing direction： One way or two way
• Gate material： Acrylic/tempered glass/plexiglass optional
• Drive motor： DC brush/brushless/servo (optional)
• Card reading method： IC/ID, barcode, ID card, fingerprint, face, finger vein, etc.
• Gate opening time： 1s
• Service life： More than 5 million times
• Traffic speed： ≤40 people/minute (normally open) 25-30people/minute (normallyclosed)
• Power on reset time： 3s

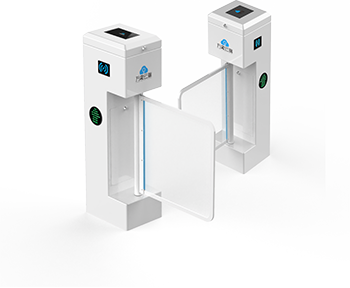

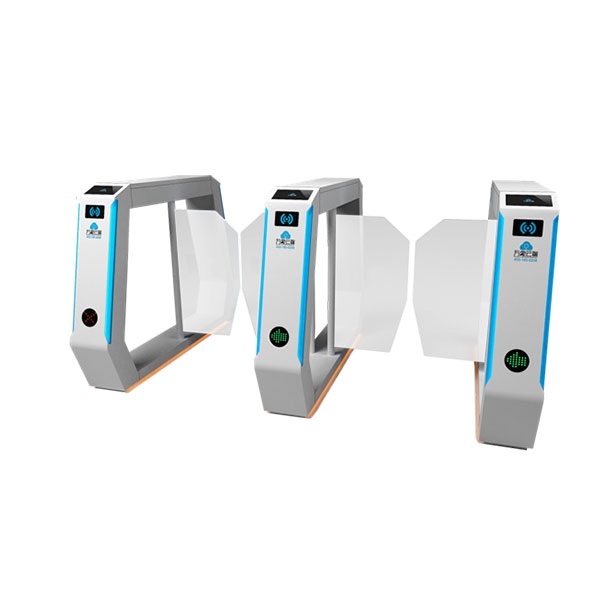

Swing Gate Series
描述
• Input voltage： AC220±10%V/50±10%HZ
• Material： Stainless steel
• Swing arm length： 500mm outside the chassis
• Maximum channel width： 550-600mm
• Light reminder： Traffic direction arrow indication
• Swing direction： One way or two way
• Gate opening time： 1-2s
• Service life： 5 million times
• Traffic speed： ≤25 people/minute
• Emergency measures： Automatic pole drop when power is off
• Transmission movement： Semi-automatic/hydraulic/fully automatic can be customized
• Verification method： IC/ID, barcode, ID card,fingerprint/face, finger vein, etc.

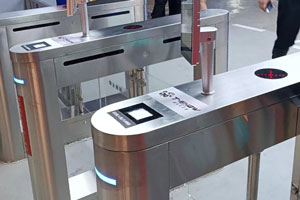

Three Roller Turnstile Series
描述
• Material： Stainless steel 304
• Material thickness： Standard 1.2mm, 1.5mm/2.0mm optional
• Maximum channel width： 550-600mm
• Gate material： Stainless steel 304
• Working voltage： Ac220±10%V/50±10%HZ
• Working temperature： -20°C-60°C
• Card reading method： ID, IC card, barcode, ID card, fingerprint, face, iris recognition
• Transmission movement： Semi-automatic/hydraulic/fully automatic can be customized
• Verification method： ID/IC card, barcode, ID card,fingerprint/face/finger vein, etc.

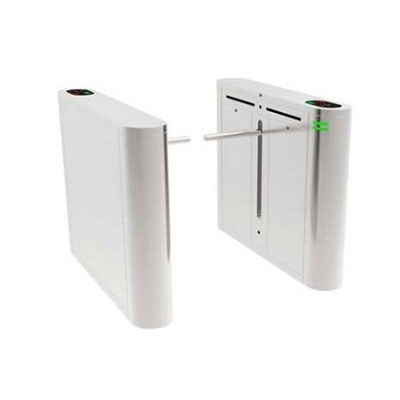

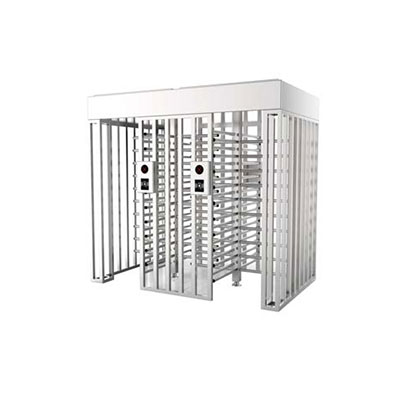

Turnstile Gate Series
描述
• Standard one-word stick length：500mm (Optional range 300-600mm)
• Weight：45-60Kg
• Chassis material：Stainless steel 304
• Working voltage：Ac220±10%V/50±10%HZ
• Drive motor：DC brush motor (24V)
• Input interface：Relay switching signal or 12V level signal or 12V pulse signal with pulse width > 100ms,drive current > 10mA
• Service life：More than 5 million times
• Communication interface：RS485
• LED indicator light：2
• Card reading window：2
• Traffic speed：30-40 people/minute
• Gate opening and closing time：1s
• Time required for traffic status：3s
• Auto reset time：10s
• Working environment：Indoor, outdoor (shade)
• Working temperature：-10℃-50℃
• Relative humidity：≤90%
Straight Gate Series
描述
• Input voltage： AC220±10%V/50±10%HZ
• Traffic direction： One way or two way
• Gate opening time：1s
• Service life： 5 million times
• Material： Standard stainless steel (304)
• Channel width： 600m
• Light reminder： Traffic direction arrow indication
• Traffic speed： ≤40 people/minute (normally open), 25-30 people/minute (normallyclosed)
• Specifications： Soft wing gate/acrylic/luminous wing gate/wing in wing

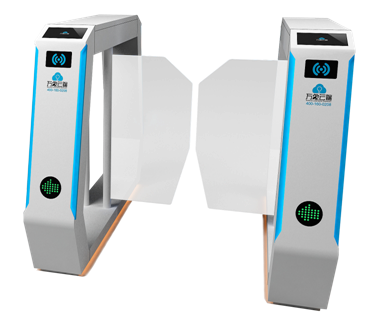

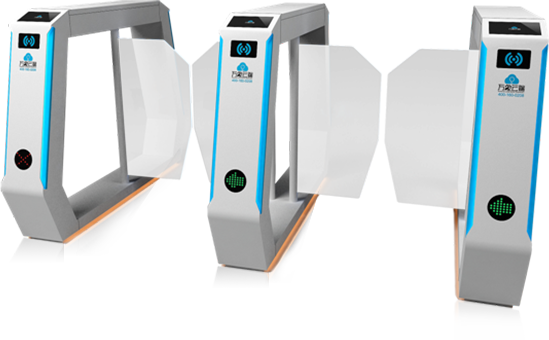

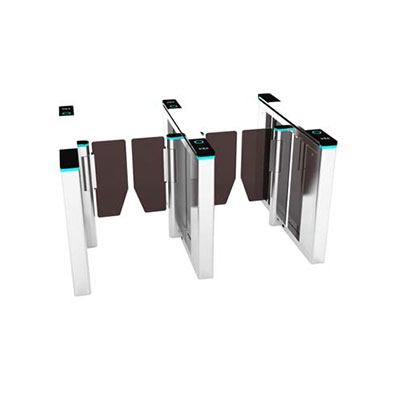

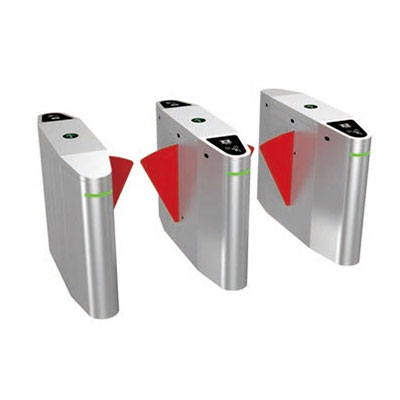

Wing Gate Series
描述
• Swiping in and out, tickets or QR code identification
• Twin cameras provide face recognition and temperature
  monitoring . Fingerprint recognition (optional)
• Set up a variety of deduction methods such as
   annual card, monthly card, and time card
• The alarm bell indicates that the alarm will ring
  if you enter illegally
Intelligent barrier gate
描述
• Swiping in and out, tickets or QR code identification
• Twin cameras provide face recognition and temperature
  monitoring . Fingerprint recognition (optional)
• Set up a variety of deduction methods such as
   annual card, monthly card, and time card
• Failure self-diagnostic and warning alarm
• External equipment can be connected to achieve
   unidirectional and two-way traffic
Swing gate
描述
APPLICATION
Where Can Point Of Sale Solutions Be Used?
描述
描述
描述
描述
Membership card
Membership card membership is supported
描述
Tickets-checking
Support physical tickets and QR code e-tickets
描述
Identify
Support face recognition ,body temperature measurement
描述
Deduction method
Supports multiple ticketing settings
描述
Alarm
Support break-in alarm，Anti-pinch detection
描述
API
Efficient API integrations with third-party systems
Operation demonstration
  • mark 300x200-1
    How to work
  • mark 300x200-2
    Face recognition
  • mark 300x200-3
    How to check the ticket
  • mark 300x200-4
    Alarm
Where Can Gate  Solutions Be Used?
  • Manage lines efficiently with wexems access control entry (ACE). A simply scan of game card or mobile ticket is all that's needed to keep the line moving.

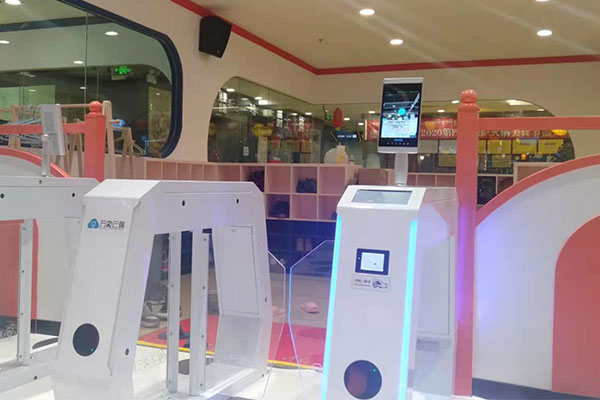

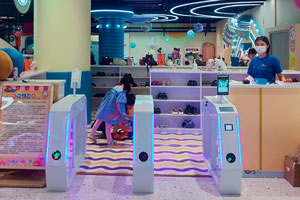

    Amusement park
    Manage lines efficiently with wexems access control entry (ACE). A simply scan of game card or mobile ticket is all that's needed to keep the line moving.

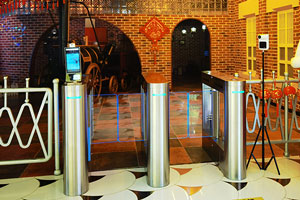

  • Theme parks
    Wexems provides cost-effective, control functionality for any attraction with, or without, a turnstile.
    Wexems provides cost-effective, control functionality for any attraction with, or without, a turnstile.
  • There is no need to queue, you can use it by scanning the code or swiping the card directly

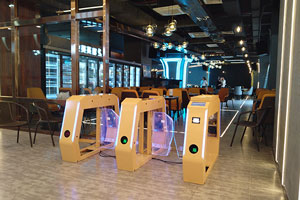

    Restaurant
    There is no need to queue, you can use it by scanning the code or swiping the card directly
